ZKW980 Portable Corrosion Monitoring Station

Applicable to laboratory measurement and industrial site measurement, the ZKW980 portable corrosion monitoring station is used for measuring corrosion rate. Based on metal corrosion loss measurement, the corrosion loss rate is calculated by measuring the changes of AC signal caused by corrosion thickness reduction of corrosion sample. As shown in Figure 1, when suffering from corrosion, the cross-sectional area of the measuring element planted in the pipeline is reduced, leading to AC signal changes. By applying AC signal to measuring sample, and the thickness reduction and corrosion rate of measuring element can be calculated by AC signal change. When objective conditions such as measuring element material and corrosion by medium are basically identical with those of equipment for measurement, the corrosion rate of equipment can be closely approximated to that of measuring element.

Application Fields
·General corrosion rate measurement in laboratory
·Corrosion inhibitor evaluation research and its industrial application research
·Oil corrosion evaluation
·Corrosion evaluation of industrial circulating water
·Corrosion test of oil and gas medium

Technical Index

【Technique Parameters of Main Unit of Instrument】

Measurement range	-262144nm～262144nm
Resolution	30 nm
Data collection interval	≥1 min (interval can be set on your own)
Working voltage	12～36VDC
Power consumption of the instrument	0.5W
Ambient temperature	－25℃～＋70℃
Protection class	Ex dⅡCT4
Protection grade	IP65

【Technique Parameters of Probes】

Commonly-used material	20#,Cr 5 Mo, 304, 321, 316, etc.
Sample thickness measurement	0.25mm～0.5mm
Sample shape	Tubular, sheet
Probe safe life	≤4 years
Probe useful life	Sample thickness/annual corrosion rate = useful life For example, when sample thickness is 0.25 mm, and corrosion rate is 0.125mm p.a., the useful life is not more than 2 year

【Configuration Information】

NO.	Name	Type	Qty.	Remark

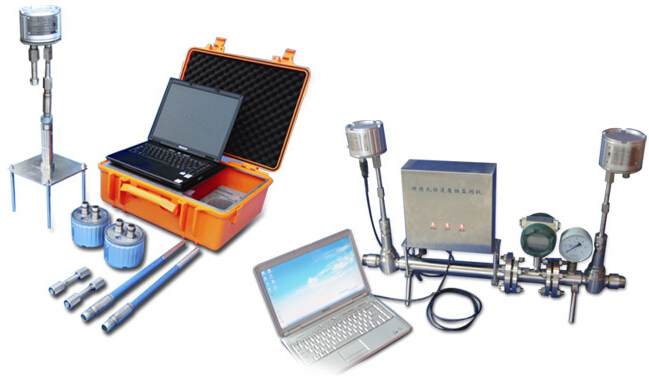

1	Portable corrosion monitoring station	ZKW980	1	Mainframe (including power supply, communication conversion, data collection card and two collectors, etc.)
2	Probe	ZK9200/9210-Material-Length	2	Tubular or sheet
3	Checker	ZK9300/50P	1
4	Power cords	GY570	1
5	Communication line	GY561	1
6	Test leads	ZKW951	2
7	Probe adaptor	ZKG600-16/22or ZKG610-22/22	2	Applicable to tubular and sheet probe
8	Stand (workbench)	ZKW910	2
9	Instruction manual	ZKW990	1
10	Software CD	ZKW991	1

【Packing Description】

Equipment net weight:

Equipment gross weight:

Packing dimensions:

Wrap:
